PVC Coated Welded Wire Mesh

PVC Coated Welded Wire Mesh

Short Description:

After PVC coat process, black or galvanized welded mesh can be with high corrosion resistance. Especially , the galvanized welded mesh is coated with two layers of PVC and Zinc which is tightly bonded to the wire by a heat process. They are double protection. Not only does the vinyl coating seal protect the wire from water and other corrosive elements, but also the underlying mesh is also protected by good zinc coating. PVC coat make the welded mesh longer working life, and more beautiful with different colors.

Product Detail

Product Tags


PVC coated welded mesh with plastic covering is constructed with galvanized iron wire of high quality. It has PVC powder covering that is processed by an automatic machine. The smooth plastic coating on this corrosion protective wire is attached with a strong adhesive which make increases durability of the wire. PVC coated galvanised welded wire mesh rolls are ideal for garden fencing, tree guards, boundary fences, plant support and climbing plant structures. The PVC coated welded wire mesh rolls are extremely corrosion resistant and are manufactured from steel wire that is welded into a square mesh structure, galvanised with a zinc coating before being encapsulated in the green PVC plastic coating. The PVC coated welded mesh which is available as both rolls and panels, is also available in different colors like white, black, green,blue etc.

Mesh Size

Wire Dia before & after PVC coat

In mm

Mesh Size

Before Coat

After Coat


1/4 Inch

0.56- 0.71mm

0.90- 1.05mm


3/8 Inch

0.64 - 1.07mm

1.00 - 1.52mm


1/2 Inch

0.71 - 1.65mm

1.10 - 2.20mm


5/8 Inch

0.81 - 1.65mm

1.22 - 2.30mm


3/4 Inch

0.81 - 1.65mmm

1.24 - 2.40mm

25.4 × 12.7mm

1 × 1/2 Inch

0.81 - 1.65mm

1.24 - 2.42mm


1 Inch

0.81 - 2.11mm

1.28 - 2.90mm


1 1/2 Inch

1.07 - 2.11mm

1.57 - 2.92mm

25.4 × 50.8mm

1 × 2 Inch

1.47 - 2.11mm

2.00 - 2.95mm


2 Inch

1.65 - 2.77mm

2.20 - 3.61mm


3 Inch

1.90 - 3.50mm

2.50 - 4.36mm


4 Inch

2.20 - 4.00mm

2.85 - 4.88mm

Roll width

0.5m-2.5m, according to request.

Roll length

10m, 15m,20m,25m, 30m, 30.5m, according to request.

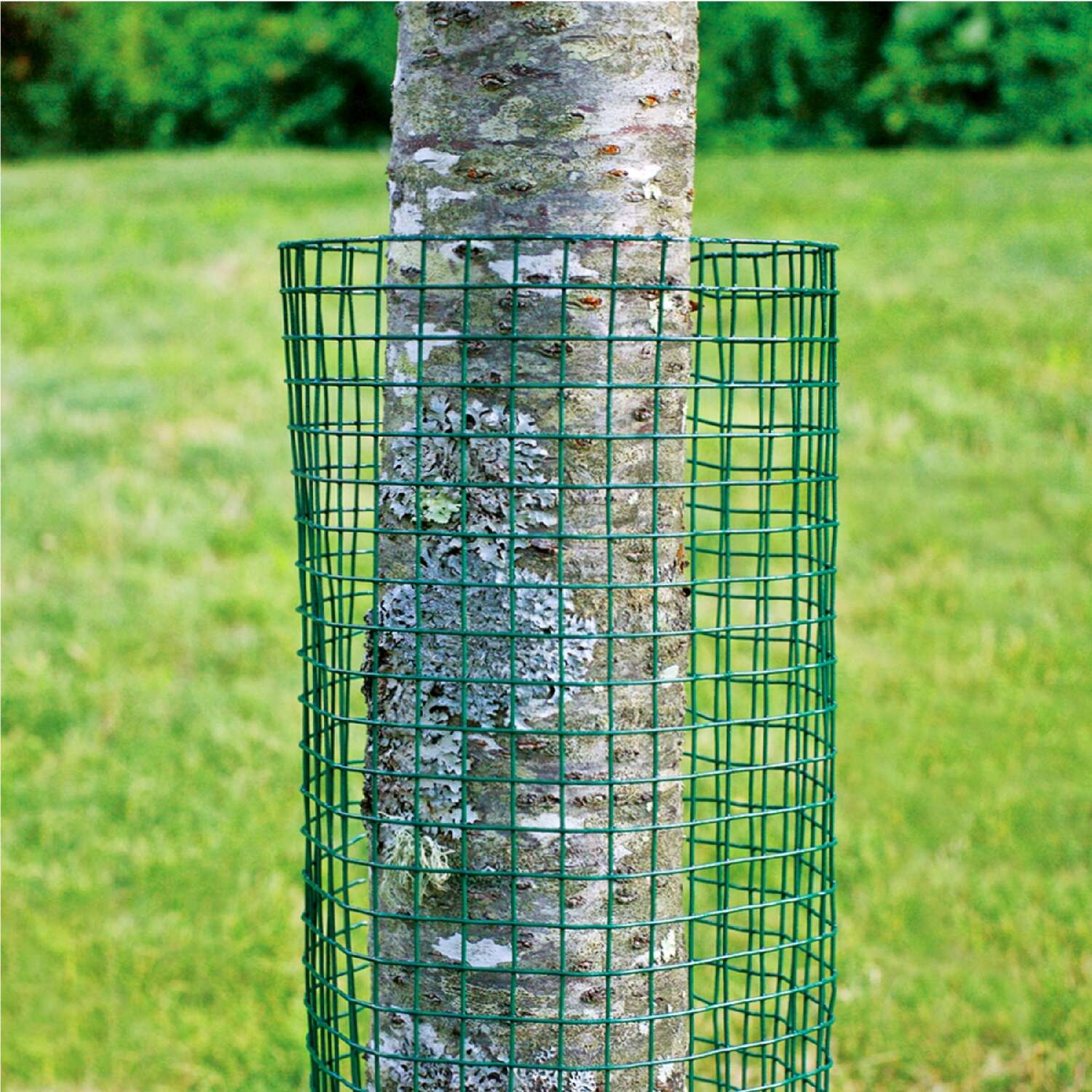

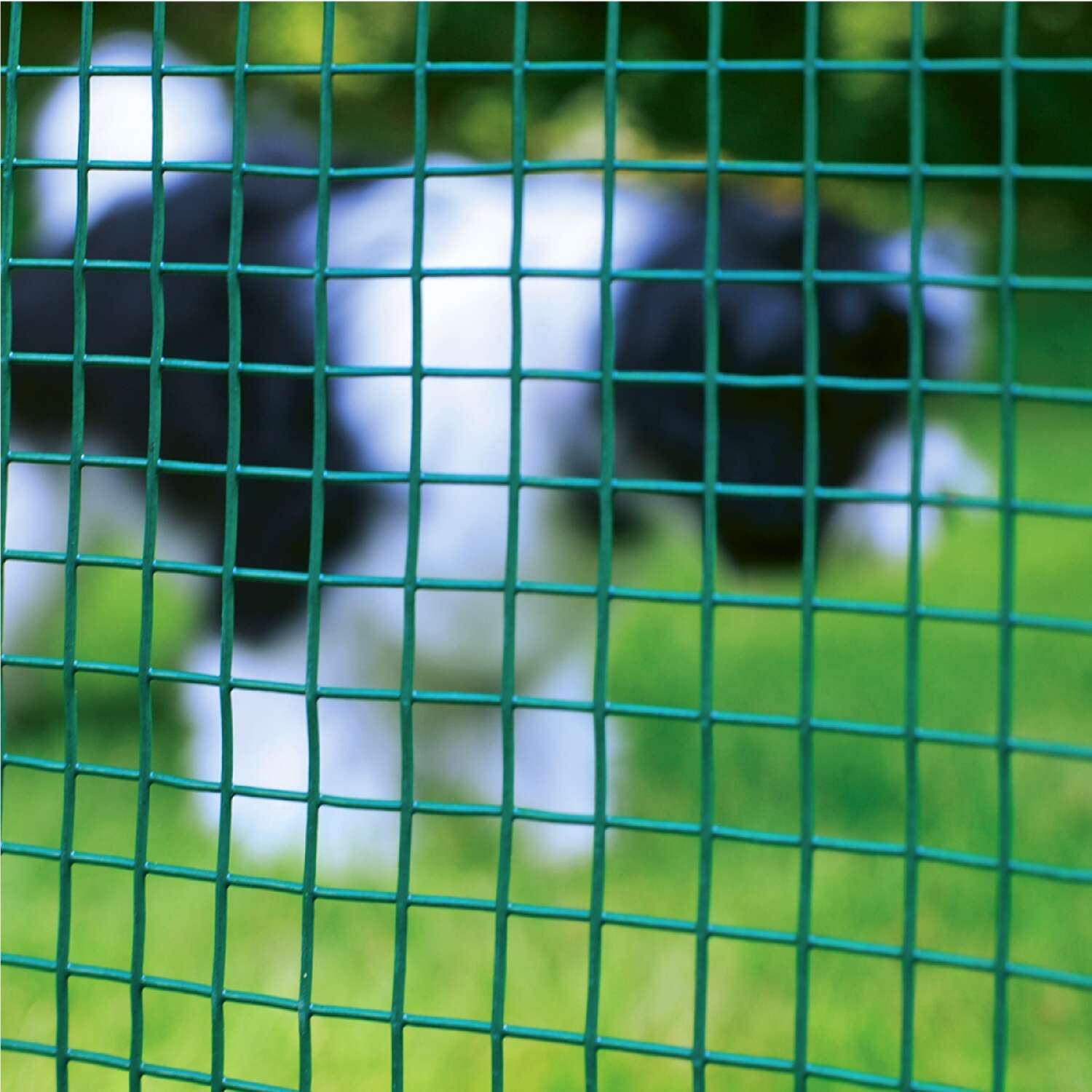

mesh for tree guard518c5f1d-77ff-4af6-b1b3-5b9e695ca639

PVC coated welded wire mesh is widely used in the fishing, industry, agriculture, construction, transport and mining. Such as machine protection cover, ranch fender, garden fence, window protection fence , passage fence, fowl cage, egg basket, foodstuffs basket, boundary fencing, tree protection guards, pet control fencing, crop protection.
