Edge protection fence

Edge protection fence

Short Description:

Edge protection fence is also called edge protection barrier,  it can  prevent persons or machinery falling from height. Its  solid bottom section stops debris falling onto people beneath and the edge protection can withstand one tonne of lateral impact.


Product Detail

Product Tags

Specification

Edge protection fence is also called edge protection barrier,  it can  prevent persons or machinery falling from height. Its  solid bottom section stops debris falling onto people beneath and the edge protection can withstand one tonne of lateral impact.

Edge protection fencing is structurally designed to secure construction working platforms for various applications, such as Railway-Infrastructure, Roof Edge Protection Barriers, Mesh Guard Edge Protection Panels, Pontoon Mesh Edge Protection System For Floating Platforms, etc.

Standard

Each edge protection fencing comprises a 4mm-6.00m steel wire construction. The wire grid has not exceeded 50mm x 50mm or 50mmx150mm, meaning it complies with AS/NZS 4994.1:2009. Panels also feature a rectangular rolled wire top. Additionally, the rolled wire bottom includes a galvanised kick plate. This solid kick plate helps prevent objects from falling through the panel bottom, reducing the risk of losing objects near the drop-off.

Purpose of Edge Protection Fencing

Each edge protection fencing has two primary purposes; the first is to create a temporary fence around the perimeter of a working area to keep the workforce safe from accidentally falling. The second purpose of the edge protection fencing system is to stop materials and debris from leaving the worksite & falling.

Specifications of Powder Coated Building Site Construction Safety Temporary Edge Protection System Edge Fence
Wire diameter
5-8mm
Opening size
50*200mm
Panel size
1100*1700/1100*2400mm/1300*1300mm/1300*2200mm
Post diameter/thickness
48*1.5/2.0mm
Surface treatment
Galvanized+powder coated / galvanized+painted /black +powder coated
Specifications can be made according to your requirements

Application

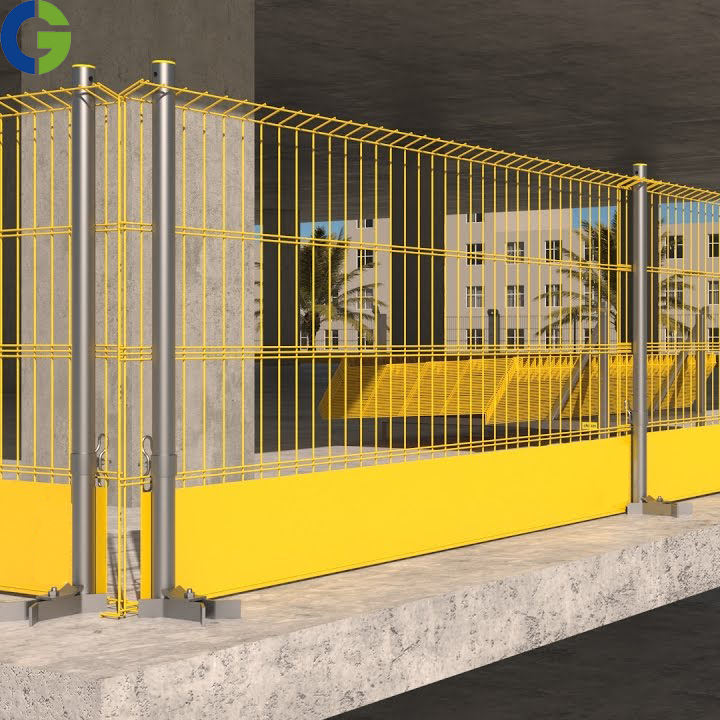

 77_副本

Edge protection fence also named edge protection fence,edge protection is fully used in construction under building to protect people.

Components are robust and are painted or Galvanised finished for a long life and exposure to extreme weather climates. The use of Systemised Temporary Edge Protection Fence makes a significant contribution to the reduction of falls on site due to ease of use, increased safety and compliance to EN 13374.
